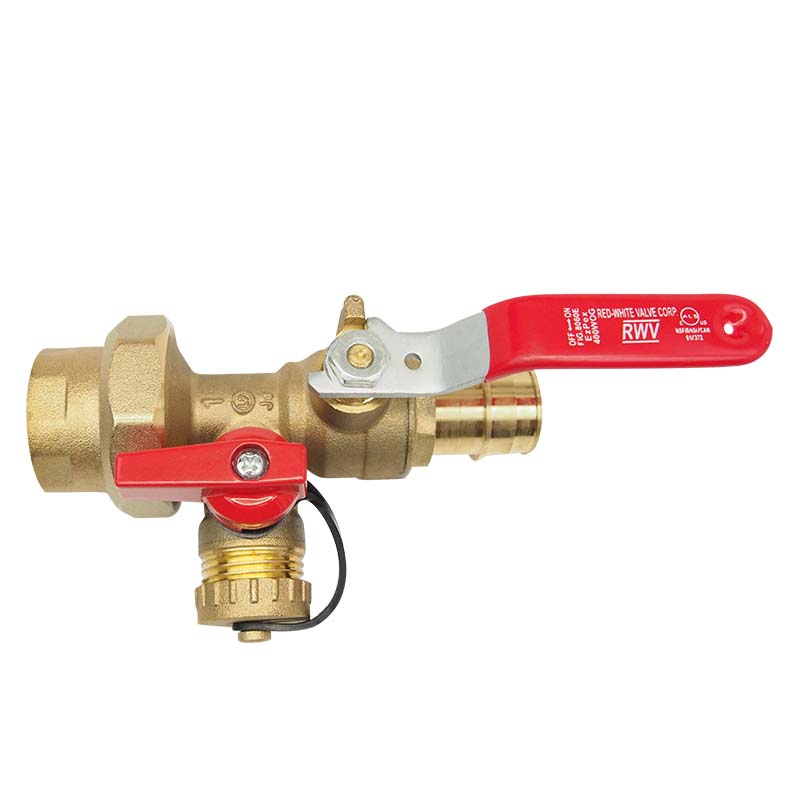

8060E-EF DZR LF Brass Union Valve with Drain

$59,345,792,292.00

400# WOG
DZR lead free brass body
Full port design
Chrome plated ball
Union body ball valve
High flow hose drains with cap and chain
Adjustable packing gland
PEX F1960 x FNPT
Virgin PTFE seats
Blow-out proof stem
AB 1953, NSF/ANSI/CAN 61 & 372

Spec Sheet

Description

Part Number Dimensions Marketing Description Connection
8060E 050E050F 1/2" PEX F1960 x 1/2" FNPT x Male Hose Union Valve with Drain PEX F1960/Thread
8060E 075E075F 3/4" PEX F1960 x 3/4" FNPT x Male Hose Union Valve with Drain PEX F1960/Thread
8060E 100E100F 1" PEX F1960 x 1" FNPT x Male Hose Union Valve with Drain PEX F1960/Thread
8060E 125E125F 1-1/4" PEX F1960 x 1-1/4" FNPT x Male Hose Union Valve with Drain PEX F1960/Thread

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
