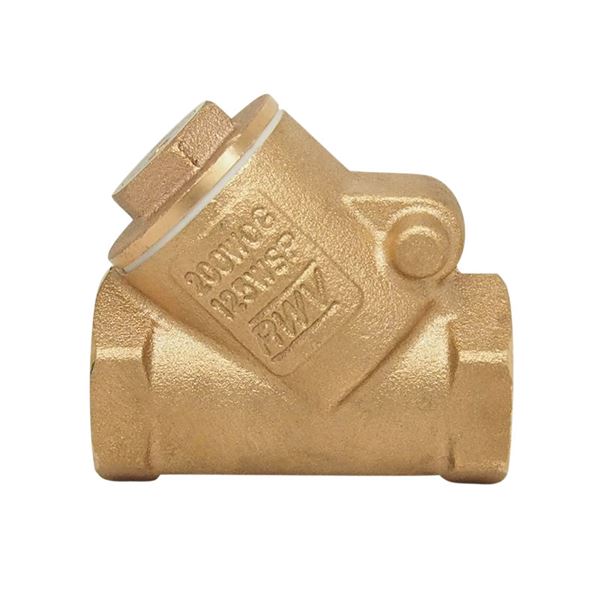

  • RedWhiteValve Check Valve 236B
125# WSP / 200# WOG
Bronze body
DZR brass disc
FNPT x FNPT
Threaded ends (ASME B1.20.1-NPT)
Swing check
Virgin PTFE seat
"Y" Pattern
MSS-SP-80
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

CAD

BIM

Size

P,T Ratings

Total Length

Height H

Weight

N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 1/4 N/A 200 PSI FROM 15°F TO 160°F
125 PSI MAX AT 366°F 		N/A 2.05 in N/A 1.57 in N/A 0.470 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 3/8 N/A 200 PSI FROM 15°F TO 160°F
125 PSI MAX AT 366°F 		N/A 2.05 in N/A 1.57 in N/A 0.450 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 1/2 N/A 200 PSI FROM 15°F TO 160°F
125 PSI MAX AT 366°F 		N/A 2.20 in N/A 1.67 in N/A 0.580 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 3/4 N/A 200 PSI FROM 15°F TO 160°F
125 PSI MAX AT 366°F 		N/A 2.76 in N/A 1.97 in N/A 1.040 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 1 N/A 200 PSI FROM 15°F TO 160°F
125 PSI MAX AT 366°F 		N/A 3.15 in N/A 2.28 in N/A 1.360 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 1 1/4 N/A 200 PSI FROM 15°F TO 160°F
125 PSI MAX AT 366°F 		N/A 3.78 in N/A 2.71 in N/A 2.240 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 1 1/2 N/A 200 PSI FROM 15°F TO 160°F
125 PSI MAX AT 366°F 		N/A 4.33 in N/A 3.19 in N/A 3.230 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 2 N/A 200 PSI FROM 15°F TO 160°F
125 PSI MAX AT 366°F 		N/A 5.04 in N/A 3.86 in N/A 5.210 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 2 1/2 N/A 200 PSI FROM 15°F TO 160°F
125 PSI MAX AT 366°F 		N/A 6.14 in N/A 4.57 in N/A 8.470 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A 3 N/A 200 PSI FROM 15°F TO 160°F
125 PSI MAX AT 366°F 		N/A 7.24 in N/A 5.35 in N/A 12.060 lb
