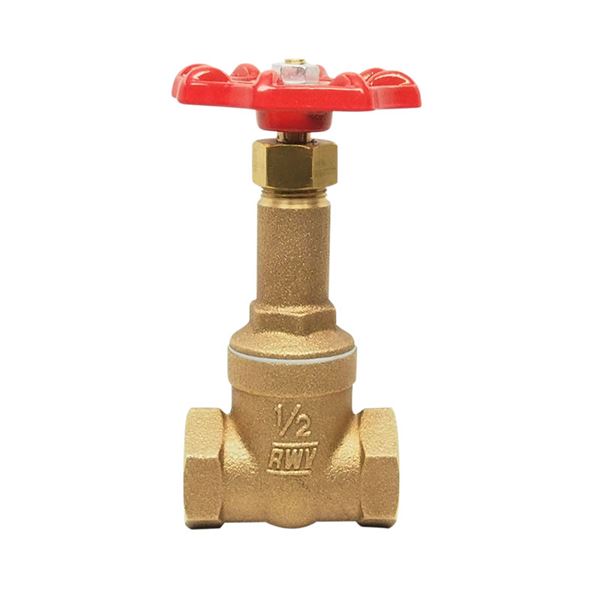

208B - Bronze Threaded End Gate Valve
Bronze Gate Valves
125# WSP / 200# WOG
Bronze body
Bronze wedge
FNPT x FNPT
Threaded ends (ASME B1.20.1-NPT)
Inserted bonnet
Rising stem
DZR corrosion resistant trim
MSS-SP-80
Bronze body
Bronze wedge
FNPT x FNPT
Threaded ends (ASME B1.20.1-NPT)
Inserted bonnet
Rising stem
DZR corrosion resistant trim
MSS-SP-80
Item # |
CAD |
BIM |
Size |
P,T Ratings |
Total Length |
Height H |
Weight |
---|---|---|---|---|---|---|---|
208B 1/2 | CAD N/A | BIM N/A | Size N/A 1/2 |
P,T Ratings
N/A 200 psi from 15 °F to 160 °F 125 psi max. at 366 °F |
Total Length N/A 1.97 in | Height H N/A 4.50 in | Weight N/A 0.750 lb |
208B 3/4 | CAD N/A | BIM N/A | Size N/A 3/4 |
P,T Ratings
N/A 200 psi from 15 °F to 160 °F 125 psi max. at 366 °F |
Total Length N/A 2.20 in | Height H N/A 5.43 in | Weight N/A 1.230 lb |
208B 1 | CAD N/A | BIM N/A | Size N/A 1 |
P,T Ratings
N/A 200 psi from 15 °F to 160 °F 125 psi max. at 366 °F |
Total Length N/A 2.68 in | Height H N/A 6.80 in | Weight N/A 1.820 lb |
208B 1 1/4 | CAD N/A | BIM N/A | Size N/A 1 1/4 |
P,T Ratings
N/A 200 psi from 15 °F to 160 °F 125 psi max. at 366 °F |
Total Length N/A 2.68 in | Height H N/A 7.88 in | Weight N/A 2.520 lb |
208B 1 1/2 | CAD N/A | BIM N/A | Size N/A 1 1/2 |
P,T Ratings
N/A 200 psi from 15 °F to 160 °F 125 psi max. at 366 °F |
Total Length N/A 2.99 in | Height H N/A 9.05 in | Weight N/A 3.450 lb |
208B 2 | CAD N/A | BIM N/A | Size N/A 2 |
P,T Ratings
N/A 200 psi from 15 °F to 160 °F 125 psi max. at 366 °F |
Total Length N/A 3.15 in | Height H N/A 11.22 in | Weight N/A 4.950 lb |
