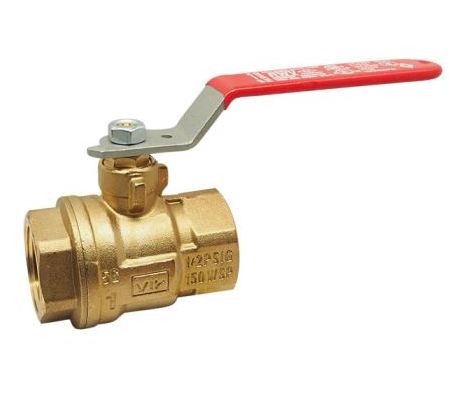

5044AB - Lead Free Brass Full Port Ball Valve
Lead Free Ball Valves
150# WSP / 600# WOG
Lead free brass body
Full port
Adjustable packing
FNPT x FNPT
Threaded ends (ASME B1.20.1-NPT)
Blow-out proof stem
Chrome plated ball
Virgin PTFE seats
MSS-SP-110
550 psi for UL use (1½" & 2")
CSA ½, 5 & 125 psi (½" - 2")
CSA ½ & 5 psi (2½" & 3")
UL approved (¼” - 2”)
FM approved (½" - 2")
AB1953, NSF/ANSI 61 & 372 certified
Meet BAA requirement
Lead free brass body
Full port
Adjustable packing
FNPT x FNPT
Threaded ends (ASME B1.20.1-NPT)
Blow-out proof stem
Chrome plated ball
Virgin PTFE seats
MSS-SP-110
550 psi for UL use (1½" & 2")
CSA ½, 5 & 125 psi (½" - 2")
CSA ½ & 5 psi (2½" & 3")
UL approved (¼” - 2”)
FM approved (½" - 2")
AB1953, NSF/ANSI 61 & 372 certified
Meet BAA requirement
Item # |
CAD |
BIM |
Size |
Operating Temperature [Max] |
Operating Pressure [Max] |
Length A |
Height H |
Length L |
Weight |
|---|---|---|---|---|---|---|---|---|---|
| 5044AB 1/4 |
CAD
N/A
|
BIM
N/A
|
Size N/A 1/4 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 1.73 in | Height H N/A 1.55 in | Length L N/A 3.15 in | Weight N/A 0.340 lb |
| 5044AB 3/8 |
CAD
N/A
|
BIM
N/A
|
Size N/A 3/8 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 1.73 in | Height H N/A 1.55 in | Length L N/A 3.15 in | Weight N/A 0.320 lb |
| 5044AB 1/2 |
CAD
N/A
|
BIM
N/A
|
Size N/A 1/2 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 2.13 in | Height H N/A 2.13 in | Length L N/A 3.54 in | Weight N/A 0.580 lb |
| 5044AB 3/4 |
CAD
N/A
|
BIM
N/A
|
Size N/A 3/4 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 2.56 in | Height H N/A 2.26 in | Length L N/A 3.54 in | Weight N/A 0.860 lb |
| 5044AB 1 |
CAD
N/A
|
BIM
N/A
|
Size N/A 1 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 2.92 in | Height H N/A 2.57 in | Length L N/A 4.98 in | Weight N/A 1.340 lb |
| 5044AB 1-1/4 |
CAD
N/A
|
BIM
N/A
|
Size N/A 1-1/4 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 3.39 in | Height H N/A 2.79 in | Length L N/A 4.98 in | Weight N/A 2.140 lb |
| 5044AB 1-1/2 |
CAD
N/A
|
BIM
N/A
|
Size N/A 1-1/2 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 3.90 in | Height H N/A 3.28 in | Length L N/A 5.57 in | Weight N/A 3.120 lb |
| 5044AB 2 |
CAD
N/A
|
BIM
N/A
|
Size N/A 2 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 4.45 in | Height H N/A 3.58 in | Length L N/A 5.57 in | Weight N/A 4.820 lb |
| 5044AB 2-1/2 |
CAD
N/A
|
BIM
N/A
|
Size N/A 2-1/2 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 6.02 in | Height H N/A 4.70 in | Length L N/A 11.08 in | Weight N/A 9.780 lb |
| 5044AB 3 |
CAD
N/A
|
BIM
N/A
|
Size N/A 3 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 6.81 in | Height H N/A 5.15 in | Length L N/A 11.08 in | Weight N/A 13.900 lb |
| 5044AB 4 |
CAD
N/A
|
BIM
N/A
|
Size N/A 4 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 7.64 in | Height H N/A 5.64 in | Length L N/A 11.08 in | Weight N/A 20.400 lb |
