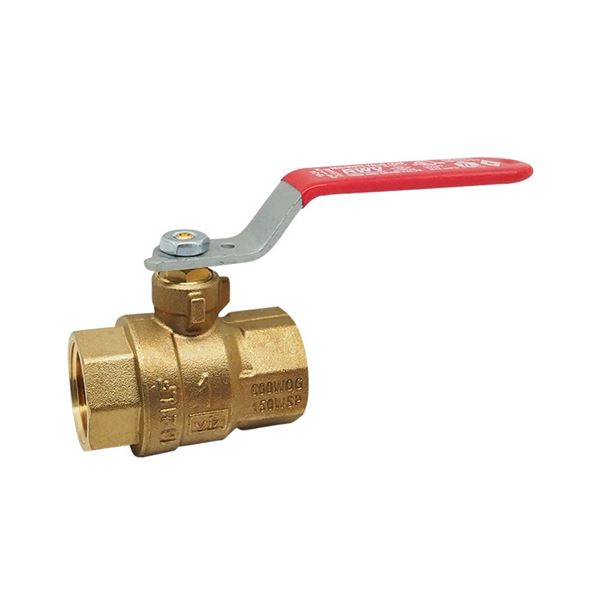

5544AB - Lead Free Brass Full Port Ball Valve
Lead Free Ball Valves
150# WSP / 600# WOG
Lead free brass body
Full port
Adjustable packing
FNPT x FNPT
Threaded ends (ASME B1.20.1-NPT)
Blow-out proof stem
Chrome plated ball
Virgin PTFE seats
MSS-SP-110
550 psi for UL use (1½" & 2")
CSA ½, 5 & 125 psi (¼” - 2")
CSA ½ & 5 psi (2½" & 3")
UL approved (¼” - 2”)
FM approved (½" - 2")
AB1953, NSF/ANSI 61 & 372 certified
Meet BAA requirement
Lead free brass body
Full port
Adjustable packing
FNPT x FNPT
Threaded ends (ASME B1.20.1-NPT)
Blow-out proof stem
Chrome plated ball
Virgin PTFE seats
MSS-SP-110
550 psi for UL use (1½" & 2")
CSA ½, 5 & 125 psi (¼” - 2")
CSA ½ & 5 psi (2½" & 3")
UL approved (¼” - 2”)
FM approved (½" - 2")
AB1953, NSF/ANSI 61 & 372 certified
Meet BAA requirement
Item # |
CAD |
BIM |
Size |
Operating Temperature [Max] |
Operating Pressure [Max] |
Length A |
Height H |
Length L |
Weight |
|---|---|---|---|---|---|---|---|---|---|
| 5544AB 1/4 |
CAD
N/A
|
BIM
N/A
|
Size N/A 1/4 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 1.72 in | Height H N/A 1.50 in | Length L N/A 3.15 in | Weight N/A 0.258 lb |
| 5544AB 3/8 |
CAD
N/A
|
BIM
N/A
|
Size N/A 3/8 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 1.79 in | Height H N/A 1.50 in | Length L N/A 3.15 in | Weight N/A 0.274 lb |
| 5544AB 1/2 |
CAD
N/A
|
BIM
N/A
|
Size N/A 1/2 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 2.17 in | Height H N/A 2.07 in | Length L N/A 3.54 in | Weight N/A 0.442 lb |
| 5544AB 3/4 |
CAD
N/A
|
BIM
N/A
|
Size N/A 3/4 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 2.40 in | Height H N/A 2.21 in | Length L N/A 3.54 in | Weight N/A 0.622 lb |
| 5544AB 1 |
CAD
N/A
|
BIM
N/A
|
Size N/A 1 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 2.97 in | Height H N/A 2.56 in | Length L N/A 4.98 in | Weight N/A 1.130 lb |
| 5544AB 1-1/4 |
CAD
N/A
|
BIM
N/A
|
Size N/A 1-1/4 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 3.31 in | Height H N/A 2.75 in | Length L N/A 4.98 in | Weight N/A 1.460 lb |
| 5544AB 1-1/2 |
CAD
N/A
|
BIM
N/A
|
Size N/A 1-1/2 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 3.52 in | Height H N/A 3.14 in | Length L N/A 5.57 in | Weight N/A 2.050 lb |
| 5544AB 2 |
CAD
N/A
|
BIM
N/A
|
Size N/A 2 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 4.11 in | Height H N/A 3.51 in | Length L N/A 5.57 in | Weight N/A 3.290 lb |
| 5544AB 2-1/2 |
CAD
N/A
|
BIM
N/A
|
Size N/A 2-1/2 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 5.31 in | Height H N/A 4.45 in | Length L N/A 7.87 in | Weight N/A 6.280 lb |
| 5544AB 3 |
CAD
N/A
|
BIM
N/A
|
Size N/A 3 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 6.03 in | Height H N/A 4.88 in | Length L N/A 11.08 in | Weight N/A 9.240 lb |
| 5544AB 4 |
CAD
N/A
|
BIM
N/A
|
Size N/A 4 | Operating Temperature [Max] N/A 160 ºF | Operating Pressure [Max] N/A 600 psi | Length A N/A 7.56 in | Height H N/A 5.63 in | Length L N/A 11.08 in | Weight N/A 16.320 lb |
