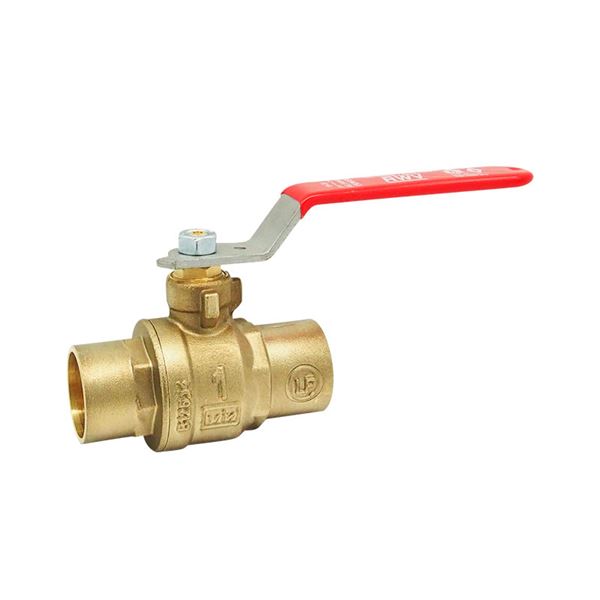

5549AB - Lead Free Brass Full Port Ball Valve On RED-WHITE VALVE CORP.

CAD (0) ▾

150# WSP / 600# WOG
Lead free brass body
Full port
Adjustable packing
Solder x Solder
Solder ends (ASME B16.22)
Blow-out proof stem
MSS-SP-110
AB1953, NSF/ANSI 61 & 372 certified
Meet BAA Requirement

1 - 9 of 9 | Results Per Page | View | Unit of Measure

Request Information Compare Items Add to CAD Cart

Item #	CAD	BIM	Size	Operating Temperature [Max]	Operating Pressure [Max]	Length A	Height H	Length L	Weight

5549AB 1/2	N/A	N/A	N/A 1/2	N/A 160 ºF	N/A 600 psi	N/A 2.21 in	N/A 2.07 in	N/A 3.54 in	N/A 0.403 lb
5549AB 3/4	N/A	N/A	N/A 3/4	N/A 160 ºF	N/A 600 psi	N/A 2.86 in	N/A 2.21 in	N/A 3.54 in	N/A 0.588 lb
5549AB 1	N/A	N/A	N/A 1	N/A 160 ºF	N/A 600 psi	N/A 3.52 in	N/A 2.56 in	N/A 4.98 in	N/A 1.070 lb
5549AB 1-1/4	N/A	N/A	N/A 1-1/4	N/A 160 ºF	N/A 600 psi	N/A 3.84 in	N/A 2.75 in	N/A 4.98 in	N/A 1.280 lb
5549AB 1-1/2	N/A	N/A	N/A 1-1/2	N/A 160 ºF	N/A 600 psi	N/A 4.26 in	N/A 3.14 in	N/A 5.57 in	N/A 2.110 lb
5549AB 2	N/A	N/A	N/A 2	N/A 160 ºF	N/A 600 psi	N/A 5.33 in	N/A 3.51 in	N/A 5.57 in	N/A 3.220 lb
5549AB 2-1/2	N/A	N/A	N/A 2-1/2	N/A 160 ºF	N/A 600 psi	N/A 6.33 in	N/A 4.45 in	N/A 7.87 in	N/A 5.660 lb
5549AB 3	N/A	N/A	N/A 3	N/A 160 ºF	N/A 600 psi	N/A 7.29 in	N/A 4.88 in	N/A 11.08 in	N/A 8.800 lb
5549AB 4	N/A	N/A	N/A 4	N/A 160 ºF	N/A 600 psi	N/A 9.34 in	N/A 5.63 in	N/A 11.08 in	N/A 16.760 lb
