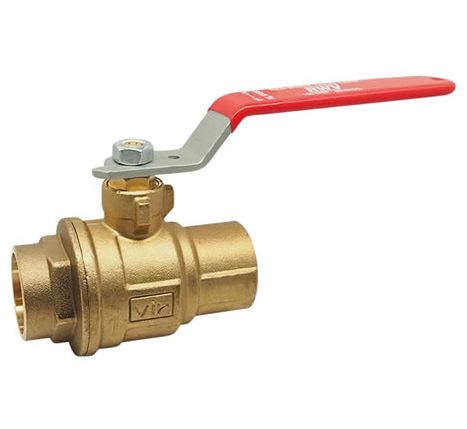

5049F - Brass Full Port Ball Valve On RED-WHITE VALVE CORP.

CAD (0) ▾

150# WSP / 600# WOG
Brass body
Full port
Adjustable packing
Solder x Solder
Solder ends (ASME B16.22)
Blow-out proof stem
MSS-SP-110
Meet BAA requirement

1 - 10 of 10 | Results Per Page | View | Unit of Measure

Request Information Compare Items Add to CAD Cart

Item #	CAD	BIM	Size	Operating Temperature [Max]	Operating Pressure [Max]	Length A	Height H	Length L	Weight

5049F 3/8	N/A	N/A	N/A 3/8	N/A 160 ºF	N/A 600 psi	N/A 1.89 in	N/A 1.55 in	N/A 3.15 in	N/A 0.280 lb
5049F 1/2	N/A	N/A	N/A 1/2	N/A 160 ºF	N/A 600 psi	N/A 2.60 in	N/A 2.13 in	N/A 3.54 in	N/A 0.560 lb
5049F 3/4	N/A	N/A	N/A 3/4	N/A 160 ºF	N/A 600 psi	N/A 3.15 in	N/A 2.24 in	N/A 3.54 in	N/A 0.800 lb
5049F 1	N/A	N/A	N/A 1	N/A 160 ºF	N/A 600 psi	N/A 3.31 in	N/A 2.57 in	N/A 4.98 in	N/A 1.180 lb
5049F 1-1/4	N/A	N/A	N/A 1-1/4	N/A 160 ºF	N/A 600 psi	N/A 3.86 in	N/A 2.79 in	N/A 4.98 in	N/A 2.080 lb
5049F 1-1/2	N/A	N/A	N/A 1-1/2	N/A 160 ºF	N/A 600 psi	N/A 4.53 in	N/A 3.28 in	N/A 5.57 in	N/A 3.000 lb
5049F 2	N/A	N/A	N/A 2	N/A 160 ºF	N/A 600 psi	N/A 5.51 in	N/A 3.58 in	N/A 5.57 in	N/A 4.500 lb
5049F 2-1/2	N/A	N/A	N/A 2-1/2	N/A 160 ºF	N/A 600 psi	N/A 6.65 in	N/A 4.70 in	N/A 11.08 in	N/A 9.020 lb
5049F 3	N/A	N/A	N/A 3	N/A 160 ºF	N/A 600 psi	N/A 7.72 in	N/A 5.15 in	N/A 11.08 in	N/A 13.500 lb
5049F 4	N/A	N/A	N/A 4	N/A 160 ºF	N/A 600 psi	N/A 9.34 in	N/A 5.64 in	N/A 11.08 in	N/A 16.440 lb
