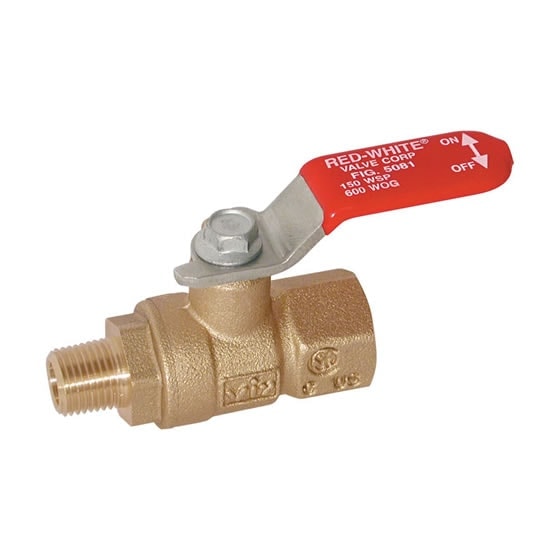

5081/5082/5083 - Brass Mini Ball Valve On RED-WHITE VALVE CORP.

CAD (0) ▾

150# WSP / 600# WOG
Brass body
Chrome plated ball
FNPT x MNPT
Threaded ends (ASME B1.20.1-NPT)
Full port
FKM Double O-Ring Packing
Blow-out proof stem
CSA ½ psi for Natural gas, Propane & LPG service
Meet BAA requirement

1 - 3 of 3 | Results Per Page | View | Unit of Measure

Request Information Compare Items Add to CAD Cart

Item #	CAD	BIM	Size	Operating Pressure [Max]	Operating Temperature [Max]	Length A	Height H	Length L	Weight

5081 1/8	N/A	N/A	N/A 1/8 x 1/8	N/A 600 psi	N/A 160 ºF	N/A 1.81 in	N/A 1.09 in	N/A 1.61 in	N/A 0.175 lb
5082 1/4	N/A	N/A	N/A 1/4 x 1/8	N/A 600 psi	N/A 160 ºF	N/A 1.81 in	N/A 1.09 in	N/A 1.61 in	N/A 0.162 lb
5083 1/4	N/A	N/A	N/A 1/4 x 1/4	N/A 600 psi	N/A 160 ºF	N/A 1.89 in	N/A 1.09 in	N/A 1.61 in	N/A 0.171 lb
